TH Marine Livewell Overflow Drain

Plumb a livewell

The TH Marine Livewell Overflow Drain Tube is designed to provide a
functional way to plumb a boat livewell. Using the overflow tube
means you only need one hole in the livewell and one fitting to
serve as both the overflow and the drain. Instead of reaching into
the water and getting wet to pull a drain plug, you simply pull the
tube out from the top and draining begins.

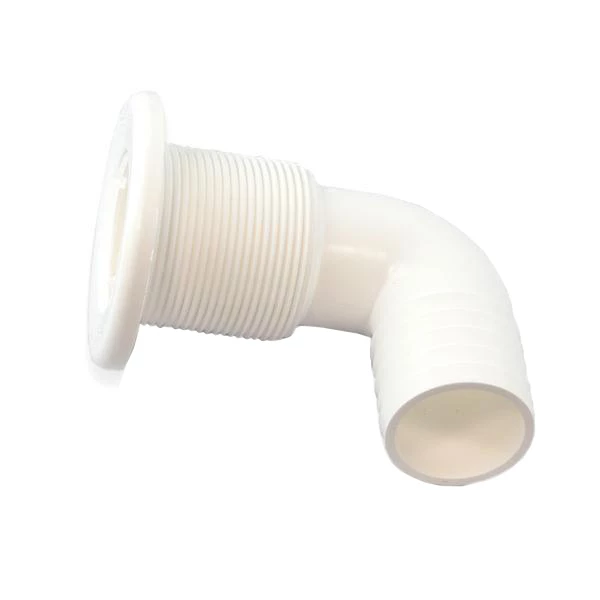

The TH Marine Livewell Overflow Drain is a 90°
injection moulded drain fitting installed in base of live tank, for
connection to through hull, with minimal space requirement under
live tank. The plastic and PVC overflow tube is fitted into drain
fitting to keep livewell water depth at desired level. Grate at top
of overflow tube prevents catch or live bait from blocking overflow
tube. To empty live tank remove the overflow tube.

TH Marine Livewell Overflow Drain Features:

• Functional and economical overflow drain
• Marine grade PVC construction for long life
• Sure sealing of live-well / bait-well drain
• Makes draining live-well / bait-well easier than a
  plug

TH Marine Livewell Overflow Drain
Specifications:

• Outlet: 90°
• Hose Size: 38mm
• Flange Overall Diameter: 74mm
• Cut Out Diameter: 48mm
• intrusion: 100mm

Note: This listing is for the overflow drain
only. Overflow tube sold separately.
